Net Weight: 80g
Color: White
Size:8cm x 7.5cm x 2cm(L x W x H)
Battery:1 x AAA (Battery is not included)
Sense line lenght:78cm

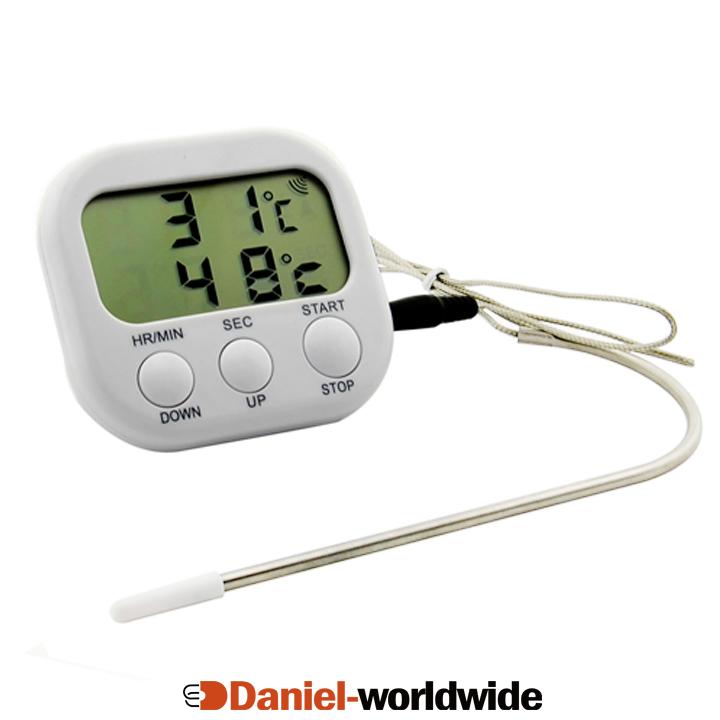

This device provides you with an easy to use the Thermometer & Timer with alarm
function in kitchen, factory or BBQ.
USING THE THERMOMETER
1. Use one 1.5V, AAA Battery (not included)
2. Push the TIMER THERMO to THERMO
3. The thermo-temp and set temp will be displayed, The thermo-temp is showing
the current temperature, The thermo-temp is showing set temperature for alarm
function: 25℃ THERMO-TEMP, 50℃ SET-TEMP
4.The default set-temp. is 50℃. Use the UP or DOWN button to set the proper
temperature, To decrease the set-temp, press DOWN, To increase the set-temp,
press UP , Hold the DOWN or UP button down for a fast decrement or increment.
5. If you have set a Wrong temperature, simply press DOWN and UP simultaneously
to reset
6. Press the START button once, the alarm stand -by mode will replace the
setting mode
7. The alarm will sound when the THERMO- TEMP reaches the SET-TEMP
8. Press STOP button once to stop the alarm. Temp. Range: -50℃~300℃
USING THE TIMER
The timer is used to keep track of your setting time in hours, minutes, and/or
seconds
1. Push the TIMER-THERMO button to the TIMER .The setting mode will be
displayed.
2. Press the MIN and SEC buttons simultaneously to reset. (You may repeat this
step anytime to stop or reset the unit.)
3. Use the MIN and SEC buttons to set the time. Press MIN to set minutes and /
or hours. Press SEC to seconds, Hold the MIN or SEC button down for a fast
increment .When the minute digit Reach 60; it will advance to an hour.
4. If you have set a wrong time, rest (see step 2)
5. If you have set the correct time, press the START button once. (NOTE: Once
the time has been set, DO NOT push the TIMER-THERMO button, since it will cancel
the set time.)
6. The alarm stand -by mode replaces the setting mode the time starts to count
down
7. The timer will sound when it counts down to 00:00 00.
8. Press the STOP button once to stop the alarm.
9. The unit will return to its pre-set position. Your may reset the unit or
start again.
10. 1.1 Meter Sensor wire.
11. Working temperature range for the body. (0?C~50?C.).
12.Please do not surpass 300℃ above object with this test.
|
