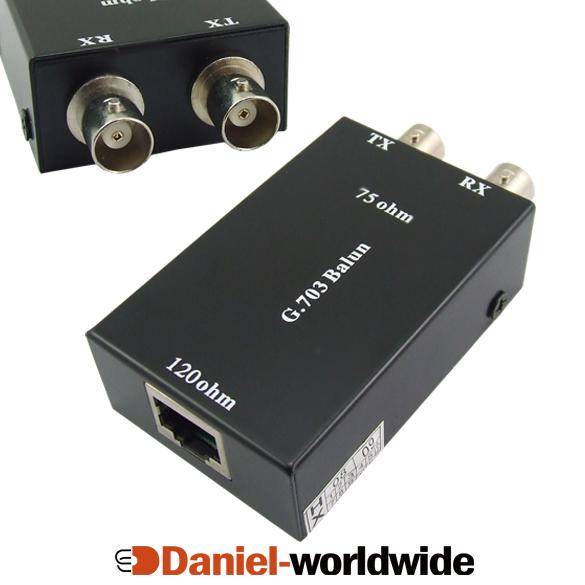

G.703 75 Ohm/120 Ohm Balun BNC/Ethernet Adapter NEW
|
|
#P15282
|
|
|
|
|
|
|
|
Stock:
|
|
Shipping Fee:[Select your city]
|
|
|
|
|
|
|
QTY:
|
|
|
26%
OFF
26%
OFF
26%
OFF
26%
OFF
26%
OFF
|
Net Weight: 84g.
Size: 42 x 77 x 20mm.
No AC Power or Batteries Needed.
Bi-Directional Signal Conversion.
75 Ohm Connection: Dual coax BNC connectors, female.
Link-to-Data Isolation: 500 volts AC/DC.
Data Rates to 2.048 Mbps.
120 Ohm Connection: Shielded RJ-45 jack (standard) or External
Terminal Jack.
Pulse Test: 3Kv as per ITU-T,K.17.
Isolation Voltage: 250VDC for 1 minute between windings.
Signal Levels: 2.37V nominal peak voltage for 2.048Mbit/s at
the coaxial end.
Pulse Shape: 2.048Mbit/s as per G.703.
Cross Talk :> 60dB from 51kHz to 51.55MHz between 2 balun
mounted 15mm apart
Insertion Loss :< 0.9Db from 51kHz to 51.55MHz.
Return Loss: 2.048Mbit/s as per G.703 Line Code.
Connectors: COAXIAL CONNECTOR(75 ohm): BNC Female TO IEC169-8 /
RJ45 Jack (120 ohm): TWISTED PAIR CABLE to standard.
|
