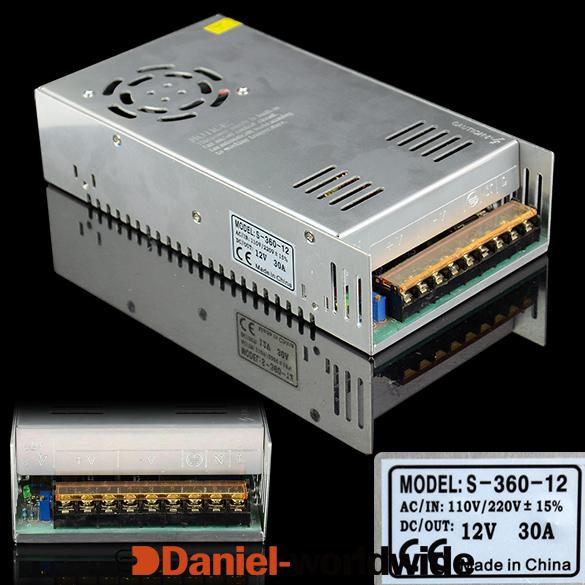

0~12V 30A 350W Switch Power Supply Driver For LED Strip light Display 110V/220V
|
|
#P15352
|
|
|
|
|
|
|
|
Stock:
|
|
Shipping Fee:[Select your city]
|
|
|
|
|
|
|
QTY:
|
|
|
26%
OFF
26%
OFF
26%
OFF
26%
OFF
26%
OFF
Net Weight: 915g
Size: Approx 21.5 x 11.5 x 5cm
Shell Material: Metal case / Aluminum base
AC input voltage range: Switch control 85-132VAC/170-264VAC
47-63Hz.
Input current: 6.5A/115V,4A/230V.
Output voltage: 0～12V Manual regulation.
Leakage current: <3.5mA/240VAC.
DC adjustable range: +/-10% rated output voltage.
Over load protection: 105-135% hiccup mode, auto-recovery.
Over-voltage protection: 105-135% Cut off the output,
auto-recovery.
Over-temp protection: Rectifier>90C Cut off the output,
auto-recovery.
Setup rise hold up time: 200ms 50ms 20mss.
Withstand voltage: I/P-O/P:1.5KvAC 1minute; I/P-FG:1.5KvAC
1minute; O/P-FG:0.5KvAC 1minute.
Working temperature/ humidity: －20?C～+60?C,20%～90%RH.
High efficiency, high reliability, low cost.
High 350W power to fit more devices.
100% full load burn-in test.
Over current, over voltage, short circuit and overheat protections.
Low output ripple and yawp.
Widely used in Industrial automation, LED display, communications, etc.
Safety Compliance: CE.
|
