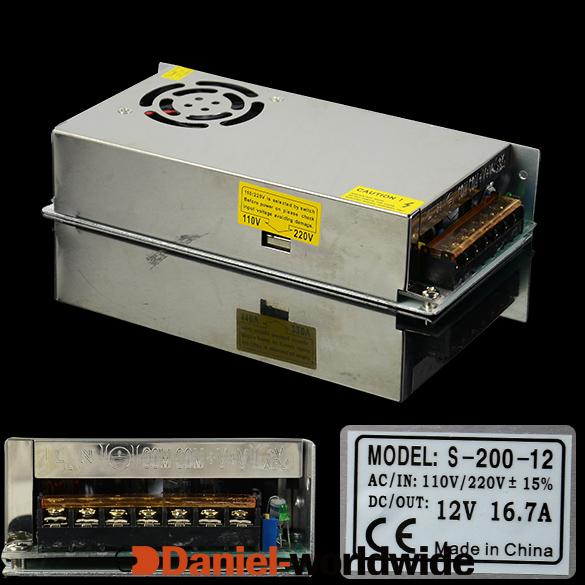

Net Weight: 652g
Size: Approx 19.8x 9.8 x 4.2cm.
Shell Material: Metal case / Aluminum base.
AC input voltage range: Switch control 85-132VAC/170-264VAC
47-63Hz.
Input current: 4.5A/115V,2.5A/230V.
Output voltage: 0~12V Manual regulation.
AC inrush current: Cold-start current 25A/115V,50A/230V.
Leakage current: <3.5mA/240VAC.
DC adjustable range: +/-15% rated output voltage.
Over load protection: 105-135% hiccup mode, auto-recovery.
Over-voltage protection: 115-135% Cut off the output,
auto-recovery.
Over-temp protection: Rectifier≥105C Cut off the output,
auto-recovery.
Setup rise hold up time: 200ms 100ms 20ms.
Withstand voltage: I/P-O/P:1.5KvAC; 1minute I/P-FG:1.5KvAC
1minute; O/P-FG:0.5KvAC 1minute.
Working temperature/ humidity: -20℃~+60℃,20%~90%RH.
High efficiency, high reliability, low cost.
Over current, over voltage, short circuit and overheat protections.
Low output ripple and yawp.
Widely used in Industrial automation, LED display, communications, etc.
Safety Compliance: CE.
|
