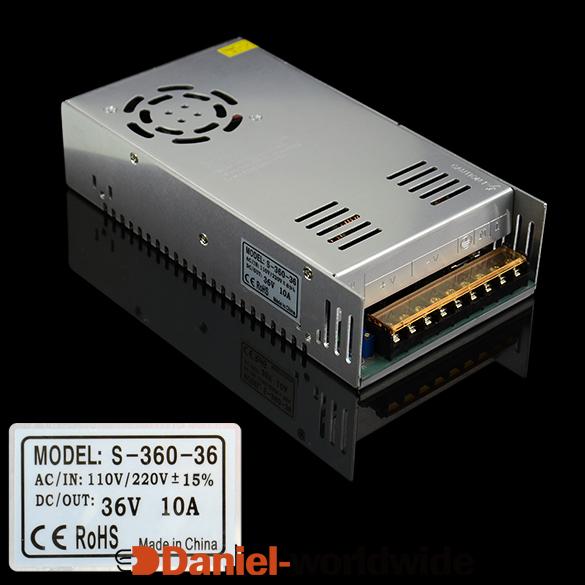

Net Weight: 923g
Size: Approx 21.5 x 11.5 x 5cm.
Shell Material: Metal case / Aluminum base.
AC input voltage range: Switch control 85-132VAC/170-264VAC
47-63Hz.
Input current: 6.5A/115V,4A/230V.
Output voltage: 0~36V Manual regulation.
AC inrush current: Cold-start current 25A/115V,50A/230V.
Leakage current: <3.5mA/240VAC.
DC adjustable range: +/-10% rated output voltage.
Over load protection: 105-135% hiccup mode, auto-recovery.
Over-voltage protection: 105-135% Cut off the output,
auto-recovery.
Over-temp protection: Rectifier>Rectifier>90C Cut off the
output, auto-recovery
Setup rise hold up time: 200ms 50ms 20ms.
Withstand voltage: I/P-O/P:1.5KvAC 1minute I/P-FG:1.5KvAC
1minute O/P-FG:0.5KvAC 1minute.
Working temperature/ humidity: -20?C~+60?C,20%~90%RH.
High efficiency, high reliability, low cost.
High 360W power to fit more devices.
100% full load burn-in test.
Over current, over voltage, short circuit and overheat protections.
Low output ripple and yawp.
Widely used in Industrial automation, LED display, communications, etc.
Safety Compliance: CE.
|
