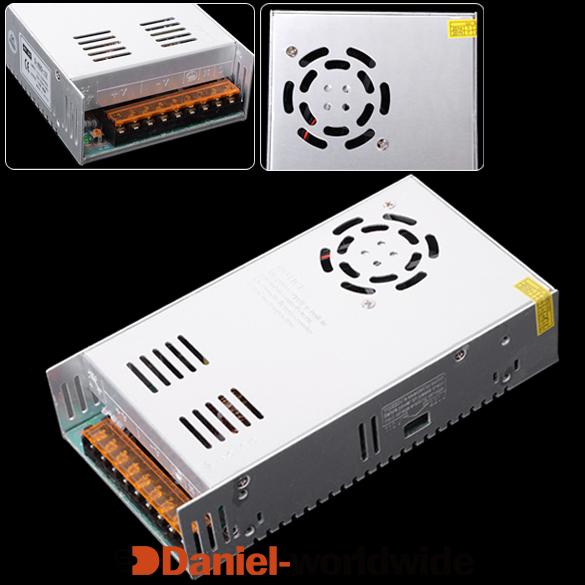

Net Weight: 1312g
Colors: Silver
Size: Approx.21 x 11 x 5cm (L x W x H)
Shell Material: Metal case / Aluminum base
105°C output capacitor
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
With Short-circuit and overload protection
Compact size, light weight
Installed with EMI filter, minimum wave
Model: S-480-12
DC output voltage: 12V
Output voltage tolerance: ±1%
Rated output current: 40A
Output current range: 0~40A
Output power: 480W
Ripple and noise:
120mVp-p
DC adjustment range:
±5%
Setup, rise, hold
time: 200ms,100ms,30ms/230VAC
AC input voltage
range: 170~250VAC 47~63Hz
AC input current (max):
6A
Efficiency: ≥85%
AC inrush current (max):
Cold start ,60A/230V
Leakage current (max):
<3.5mA/240VAC
Overload protection: 115%~135%rated
output power ,start loading, Protection mode: hiccup mode,
Auto-recovery.
Over voltage protection:
115%~135%Shut down O/P, Auto-recovery
Over temp protection:
≥105°CShut down O/P , Auto-recovery
Working temperature humidity:
-10°C~+60°C;20%~90%RH
Withstand voltage: I/P-O/P:1.5KVAC
I/P-FG:1.5KVAC O/P-FG :0.5KVAC
Insulation resistance: I/P-O/P: I/P-FG
, O/P-FG :100M Ohms/500VDC
|
