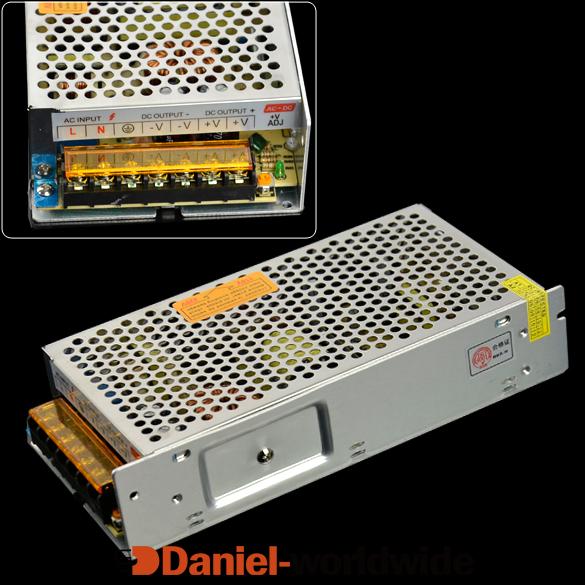

48V 3A 150W Regulated Switching Power Supply for LED Strip Light
#P15513
Stock:
Shipping Fee:[Select your city]

QTY:

Recommend Products

Input Voltage: 100~120V AC, 200~240V AC (Preset 230V)
Output Current: 3A
Shell Material: Metal case / Aluminum base
DC output voltage: 48V
Output voltage error: ±1%
Rated output current: 3.2A
Output current rage: 0-3.2A
Wave and noise: 240mVp-p
Load stability: ±1%
DC output power: 153.6W
Efficiency: 87%

Net Weight: 487g
Adjustable range for DC voltage: ±10%
AC input voltage range: 85-132VAC/170-264VAC selected by switch 47~63Hz;240~370VDC
Input current: 3.2A/115 V 1.6A/ 230 V
AC Inrush current: Cold start 35A/230VAC
Leakage Current: <3.5mA/240VAC
Overload protection: 100%~160%

Type: Foldback current limiting

Reset: auto recovery
Over-voltage protection: 115-135% Cut off the output. auto recovery
Setup rise hold up time: 100ms,50ms,20ms at full load
Withstand voltage: I/P-O/P:1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG100M Ohms/500VDC
Working temperature and humidity: -10°C~+60°C;20%~90 %RH
Storage Temp, Humidity: -20°C~+85°C;10%~95 %RH
105°C output capacitor.
AC input power suitable for the world.
High efficiency and low operation temperature.
